Curtain Wall / Фасадные серии

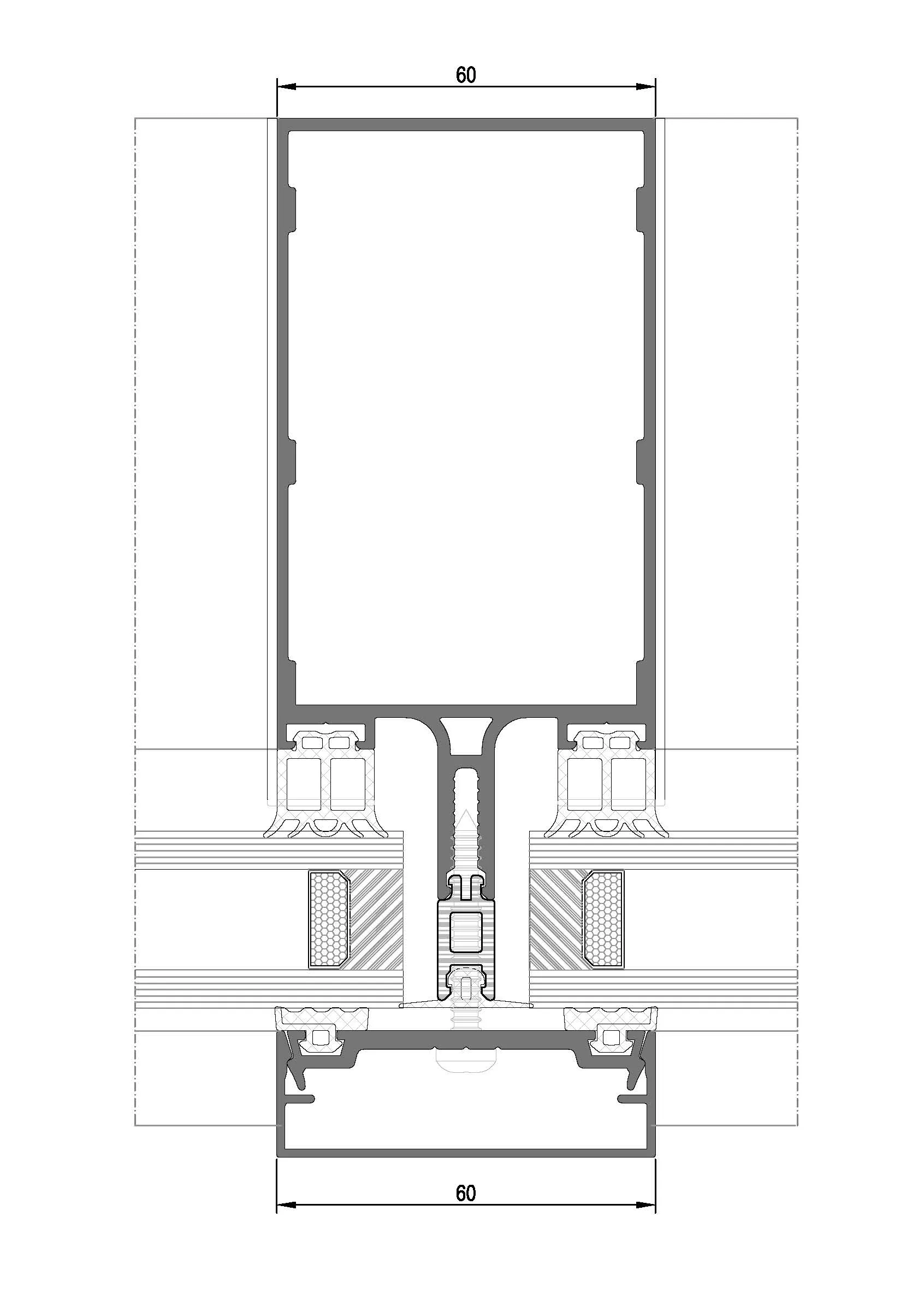

REF60
REF60 – новая генерация фасадной системы со структурным и каповым остеклением, расширенными опциями и высокой изоляцией.
Technical Specifications
Profile Width
60 mm
Mullion Depths
min. 80 mm – max. 255 mm
Transom Depths
min. 68 mm – max. 248 mm
Wall Thickness
1.6 / 1.8 / 2 / 2.5 mm
Max. Glass
Thickness
57 mm
Thermal Insulation
Bar
14.8 / 24 / 34 mm
Key Features
Structural
Glazing
High Thermal
Insulation
Weather
Resistant
Cap & Structural
Glazing
Extended Design
Options
Custom Colors
Documentation
Download PDF Catalog
Technical specifications & details
